Oracle Networking - TNSNames, Listener.ora
This page is a quick overview showing how to connect an Oracle client to an Oracle server.
The basic steps are
1. Set a global_name for the database

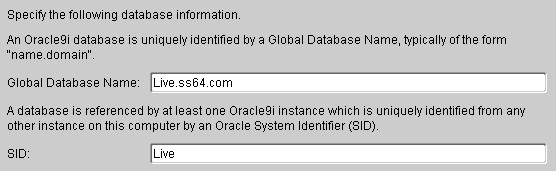

When creating a database with 'Oracle Database Configuration Assistant' (DBCA) specify a new, unique global_name:
Alternatively to change the Global_Name of an existing database:
ALTER DATABASE rename global_name to Live.ss64.com;
2. Configure the Listener

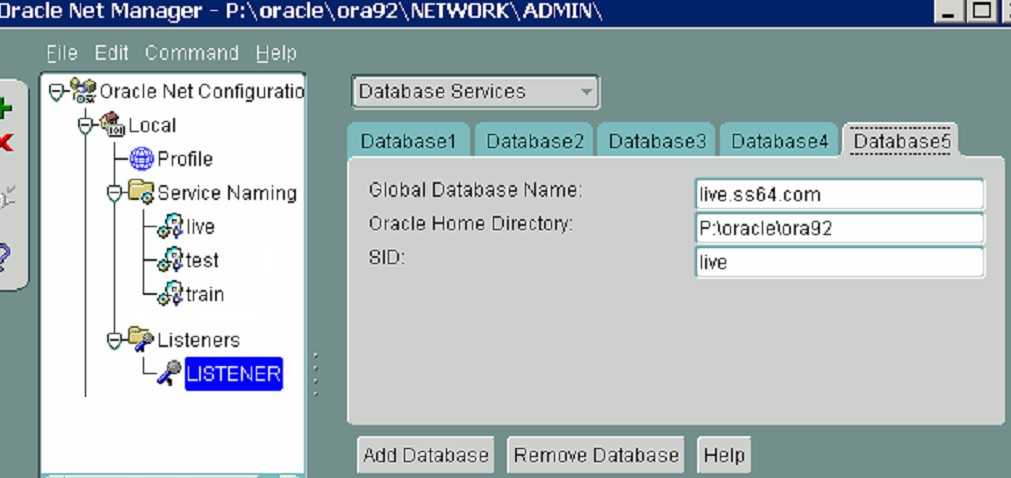

Run 'Oracle Net Manager' on the server, choose Database Services then Add Database and fill in the global_name.
If this fails to work, rename Listener.ora to Listener.OLD and then run 'Oracle Net Manager' again.
File, Save will save this configuration into the Listener.ora file.
Then load Listener.ora into memory to make the settings active
From the OS command line LSNRCTL reload
Alternatively stop and start the listener completely:
LSNRCTL stop
LSNRCTL start
3. Configure the client

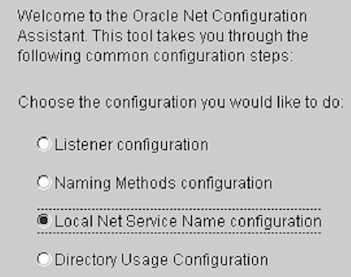

On a client PC run the 'Oracle Net Configuration Assistant' choose Local Net Service Name (TNSNames)

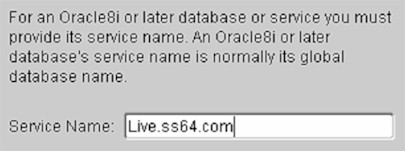

Specify a global_name that exactly matches the listener settings and fill in the other prompts.
These settings will be saved in $oracle_home/network/admin/Tnsnames.ora
At this point you should be able to connect to the database with sql*plus
connect scott/tiger@Live.ss64.com
If it fails, rename Tnsnames.ora to Tnsnames.OLD and run the 'Oracle Net Configuration Assistant' again.
4. Configure Oracle Enterprise Manager
Start the Oracle Agent service on the server.
If it's already running, stop and restart it.
If the agent fails to start, Backup and Delete the following and try again:
$Oracle_home/network/agent/*.Q
$Oracle_Home/network/admin/SNMP_RO.ora
$Oracle_Home/network/admin/SNMP_RW.ora,
$Oracle_Home/network/admin/dbsnmp.ver
$Oracle_Home/network/admin/services.oraOn the client, Start the OEM Console, the default OEM administrator is "sysman" with a password of "oem_temp".
Navigate to menu "Navigator/ Discover Nodes"
In case of problems you may need to delete the Node from the OEM client and re-discover it.
If you create a database using DBCA, you'll find some of the settings above will have been set automatically.
This page only scratches the surface of Oracle network configuration, full documentation can be found at docs.oracle.com
SQLNET.ora
Other options can be set in the $oracle_home/network/admin/sqlnet.ora file:
names.default_domain = your_network_domain_name
When you set a default domain name (for example, ss64.com), that domain name will be automatically appended to any unqualified name, so typing @Live will be interpreted as @Live.ss64.com
names.directory_path = (TNSNAMES,ONAMES,HOSTNAME)
A list of naming adaptors to be used when resolving a name. These will be used in the order listed.
TNSNAMES = tnsnames.ora file, ONAMES = Oracle Names, HOSTNAME = use the hostname, NDS = Novell Netware, NIS, CDS = OSF DCE's Cell Directory Service
log_directory_client = /oracle/network/log
The directory to which client log file will be written.
If you notice SQLNET.LOG files littering your disk and turning up in many directories, this is because the default value of LOG_DIRECTORY_CLIENT is the current working directory. Specify one folder here and you will tidy things up.
log_directory_server = /oracle/network/log
The directory to which log files from the server are written
sqlnet.authentication_services = NONE
Password authentication services: {beq, none, all, kerberos5, cybersafe, radius}
trace_level_server = OFF
The level at which the server program is to be traced: {OFF,USER,ADMIN,SUPPORT, 0-16}
trace_directory_server = /oracle/network/trace
The name of the directory to which trace files from the server are written
trace_level_client = OFF
Indicates the level at which the client program is to be traced in the log file.
Possible values: {OFF,USER,ADMIN,SUPPORT, 0-16}
Default: OFF (0)
trace_directory_client = /oracle/network/trace
The directory to which trace files from the client are written.
tnsping.trace_level = OFF
The level at which TNS is to be traced: {OFF,USER,ADMIN,SUPPORT, 0-16}
sqlnet.expire_time = 10
Verify the client session is alive every n minutes (reclaim resources on a dead client)
sqlnet.connect_timeout = 5
Maximum time interval (in seconds) for the database session to establish a connection between a client and server. This can be used to limit the effect of Denial of Service or brute force dictionary attacks. ( 0 = off)
